Architecture

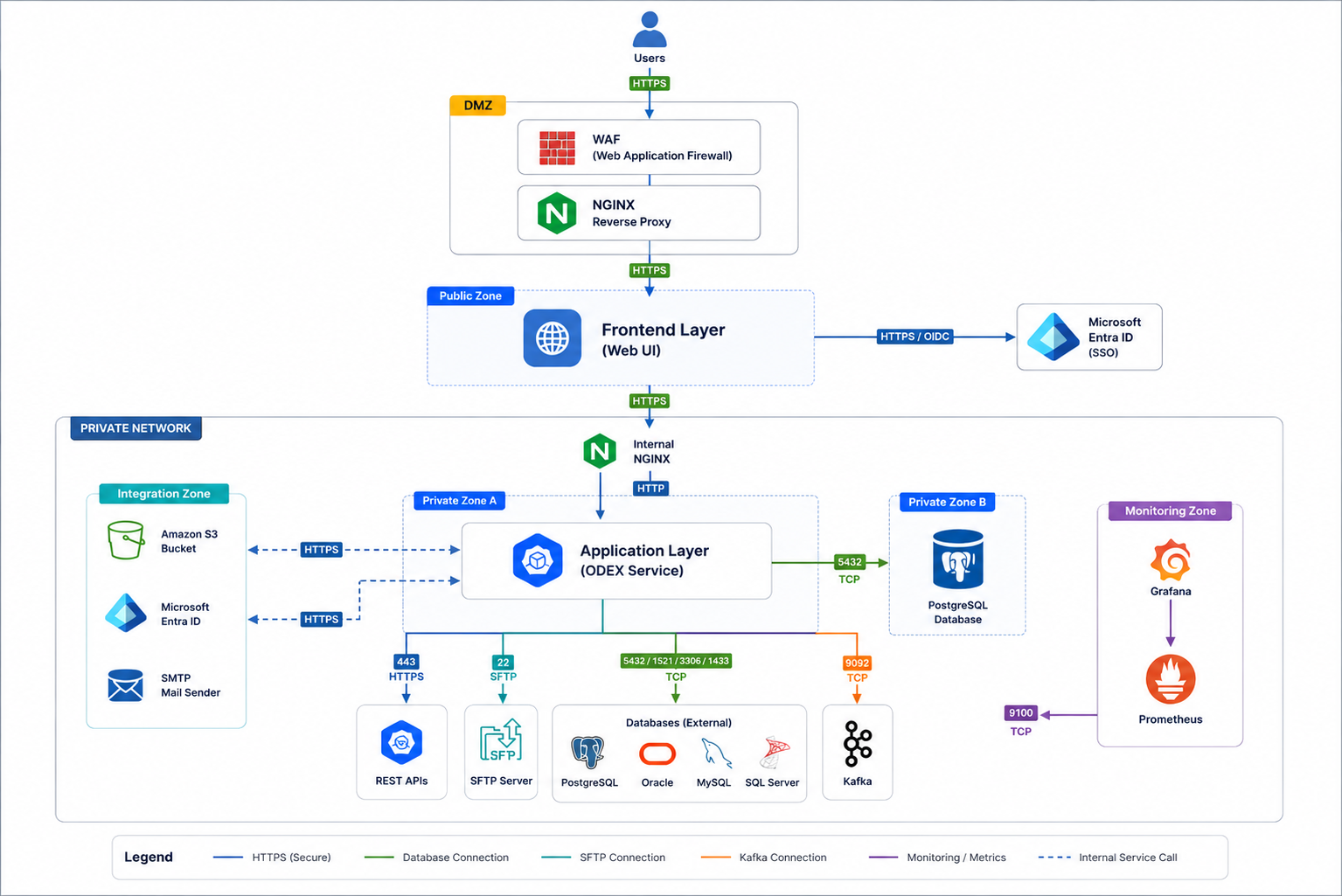

How a request travels from a user through the DMZ, the front-end and back-end layers, and into the systems Fordeq connects to.

SYSTEM ARCHITECTURE

Click to expand ⤢

Every hop is scoped to its own zone (public, private, integration, monitoring), and every connection is labeled with the port it uses. Click the diagram to view it full size.
